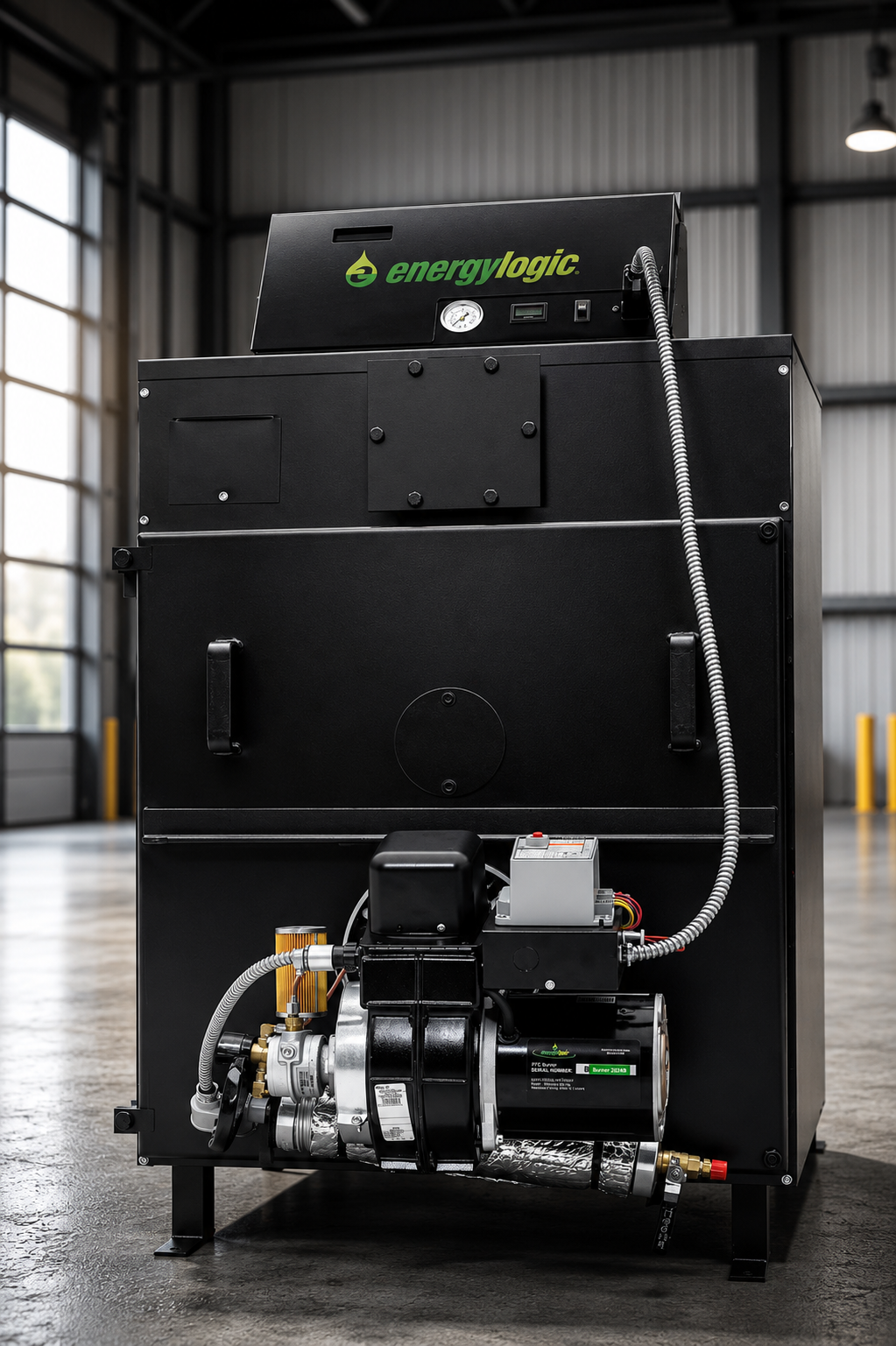

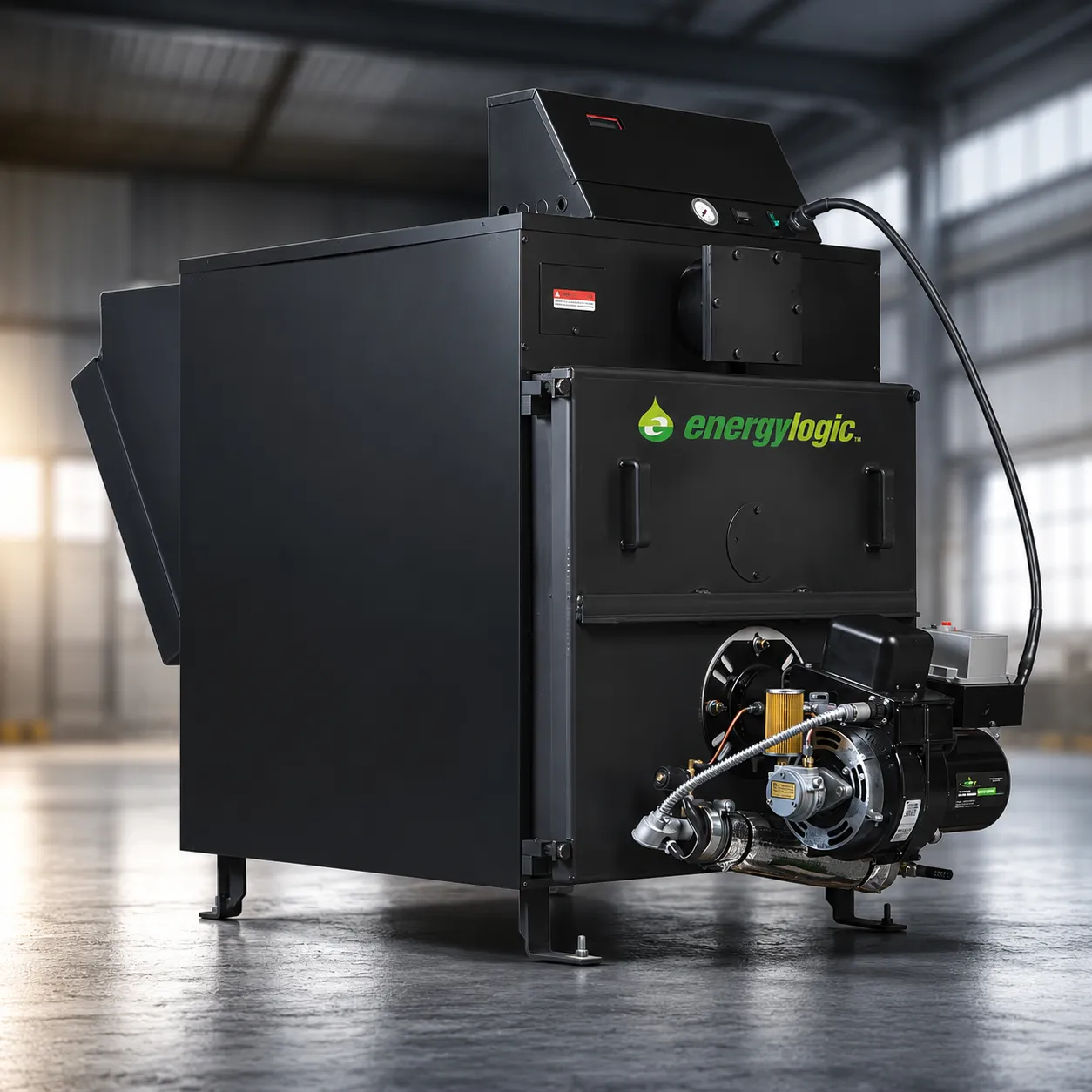

Waste Oil Boilers
______________________
EL-200B
.png)
Information
______________________
Commonly Used Fuels
Used crankcase oils, ATF, hydraulic fluid, No. 2 fuel oil, and diesel fuel
Fuel Meter Pump
Precision metering over a wide range of fuels
UL Certification
UL listed system
Fuel Flow Rate
1.4 gallons/5.3 liters per hour
BTU Input
200,000 BTU/58.3 kW per hour
Water Output Temp. (max)
230 F /110 C
Domestic Hot Water Output
4.0 gallons / 15 liters per minute at 100 F / 37.8 C temp rise
Heat Exchanger
Wet floor based design
Boiler Capacity
30 gallons / 113.56 liters
System Dimensions
45"H x 32"W x 50"D /
114cm H x 82cm W x 127cm L
Hour Meter
Analog (Clocks only actual burn time, not blower)
Exhaust Flue Diameter
8" / 20.32cm diameter
Fuel Tank
Single wall 250 gal./946.35 liter workbench. Double wall workbench available
Electrical Req.
115 VAC 60Hz, 20 amps dedicated circuit
Shipping Weight
System with tank -1237lbs. / 561kg
System without tank - 812lbs. / 369kg
Standard Features
Integrated Air Compressor Barometric Damper, Draft Gauge
Optional Features
Various Size Fuel Tanks
______________________
EL-375B
______________________
Information
Commonly Used Fuels
Used crankcase oils, ATF, hydraulic fluid, No. 2 fuel oil, and up to 90W gear oil.
Fuel Meter Pump
Precision metering over a wide range of fuels
UL Certification
UL listed system
Fuel Flow Rate
2.7 gallons/10.2 liters per hour
BTU Input
375,000 BTU / 109 kW per hour
Water Output Temp. (max)
230 F /110 C
Domestic Hot Water Output
6.0 gallons / 22 liters per minute at 100 F / 37.8 C temp rise
Heat Exchanger
Wet floor based design
Boiler Capacity
43 gallons/162.75 liters
System Dimensions
50"H x 28"W x 54.25"D /
127 cm H x 71 cm W x 138 cm D
Hour Meter
Analog (Clocks only actual burn time)
Exhaust Flue Diameter
8" / 20.32cm diameter
Fuel Tank
Single wall 250 gal./946.35 liter workbench. Double wall workbench available
Electrical Req.
115 VAC 60Hz, 20 amps dedicated circuit
Shipping Weight
System with tank - 1450lbs. / 656kg
System without tank - 1025lbs. / 464kg
Standard Features
Integrated Air Compressor Barometric Damper, Draft Gauge
Optional Features
Various Size Fuel Tanks
______________________
EL-500B
______________________
Information
Commonly Used Fuels
Used crankcase oils, ATF, hydraulic fluid, No. 2 fuel oil, and diesel fue
Fuel Meter Pump
Precision metering over a wide range of fuels
UL Certification
UL listed system
Fuel Flow Rate
3.6 gallons/13.6 liters per hour
BTU Input
499,000 BTU / 146 kW per hour
Water Output Temp. (max)
230 F /110 C
Domestic Hot Water Output
8.0 gallons / 30 liters per minute at 100 F / 37.8 C temp rise
Heat Exchanger
Wet floor based design
Boiler Capacity
52 gallons/196.84 liters
System Dimensions
45"H x 32"W x 68"D /
114cm H x 82cm W x 173cm L
Hour Meter
Analog (Clocks only actual burn time)
Exhaust Flue Diameter
10' / 25.4cm diameter
Fuel Tank
Single wall 250 gal./946.35 liter workbench. Double wall workbench available
Electrical Req.
115 VAC 60Hz, 20 amps dedicated circuit
Shipping Weight
System with tank - 1550lbs. / 703kg
System without tank - 1125lbs. / 510kg
Standard Features
Integrated Air Compressor Barometric Damper, Draft Gauge
Optional Features
Various Size Fuel Tanks
